Configuring Xiaomi Push on MoEngage

Configure App Id

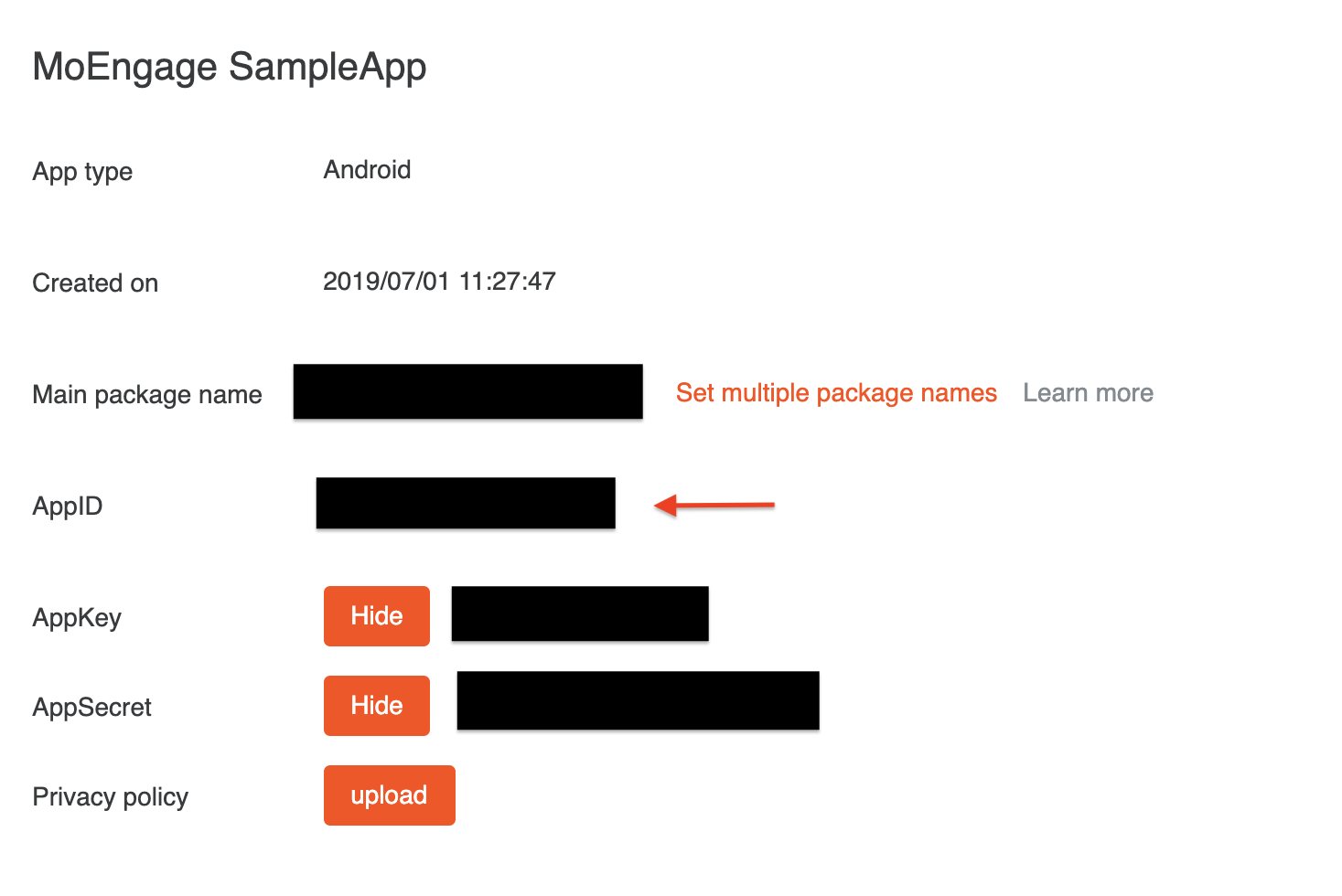

To get your App Id login to the Mi Console and navigate to the App Info section you can find your App-Id over there.

Configure App Key

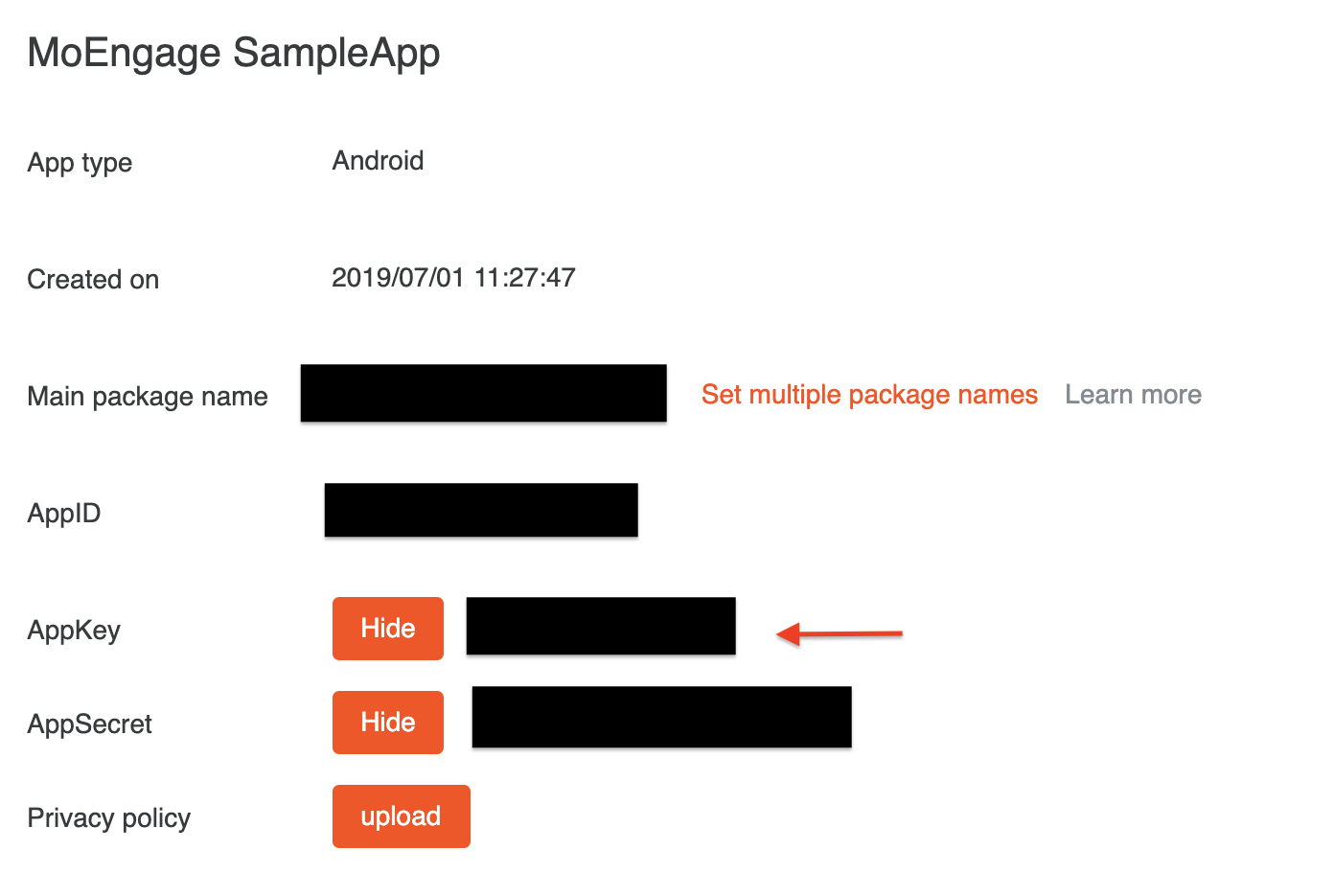

To get your App Key login to the Mi Console and navigate to the App Info section you can find your App Key over there. Click on the View button to see your App Key

Configure App Secret

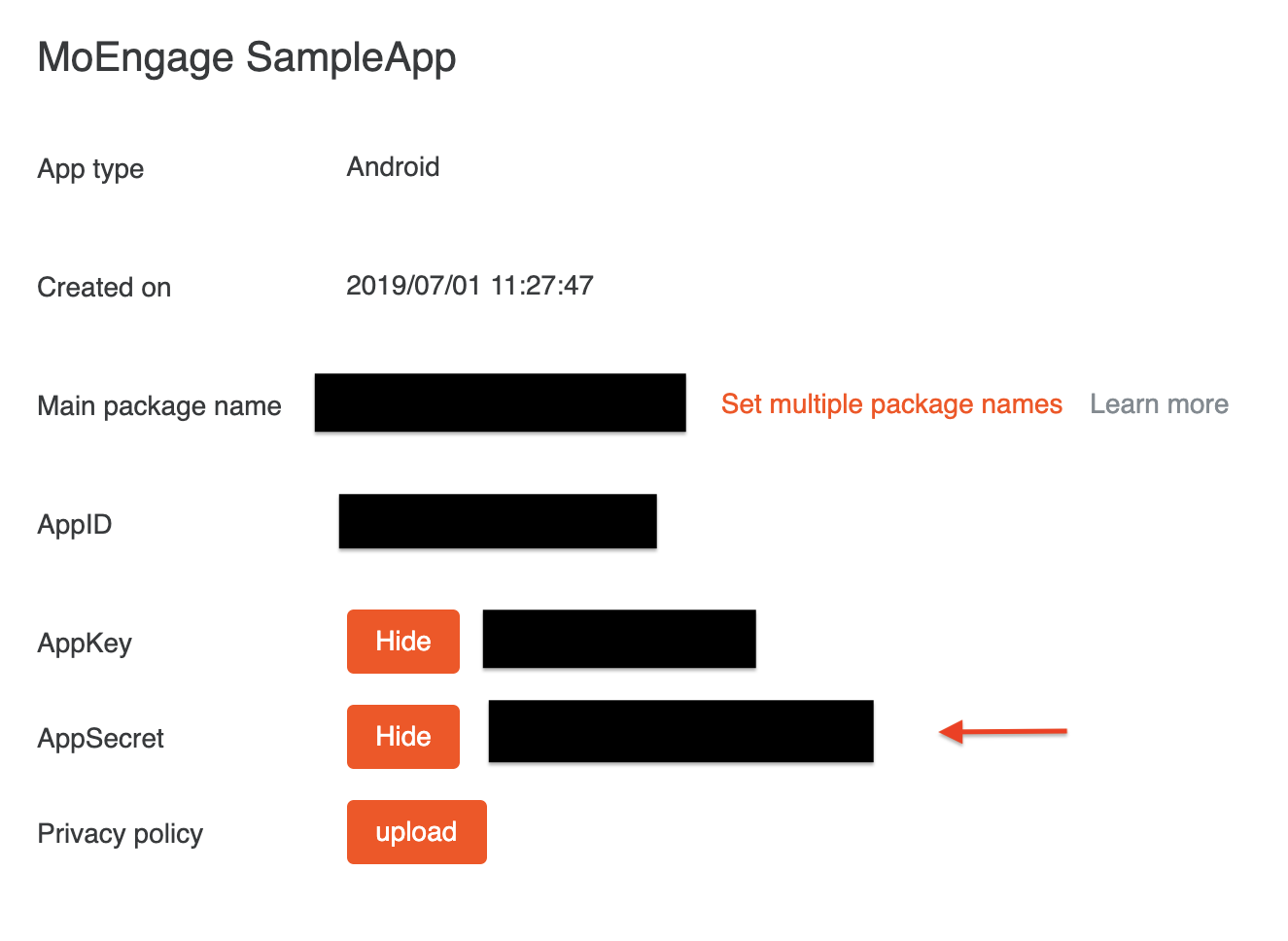

To get your App Secret login to the Mi Console and navigate to the App Info section you can find your App Secret over there. Click on the View button to see your App Secret

Configure Small Icon

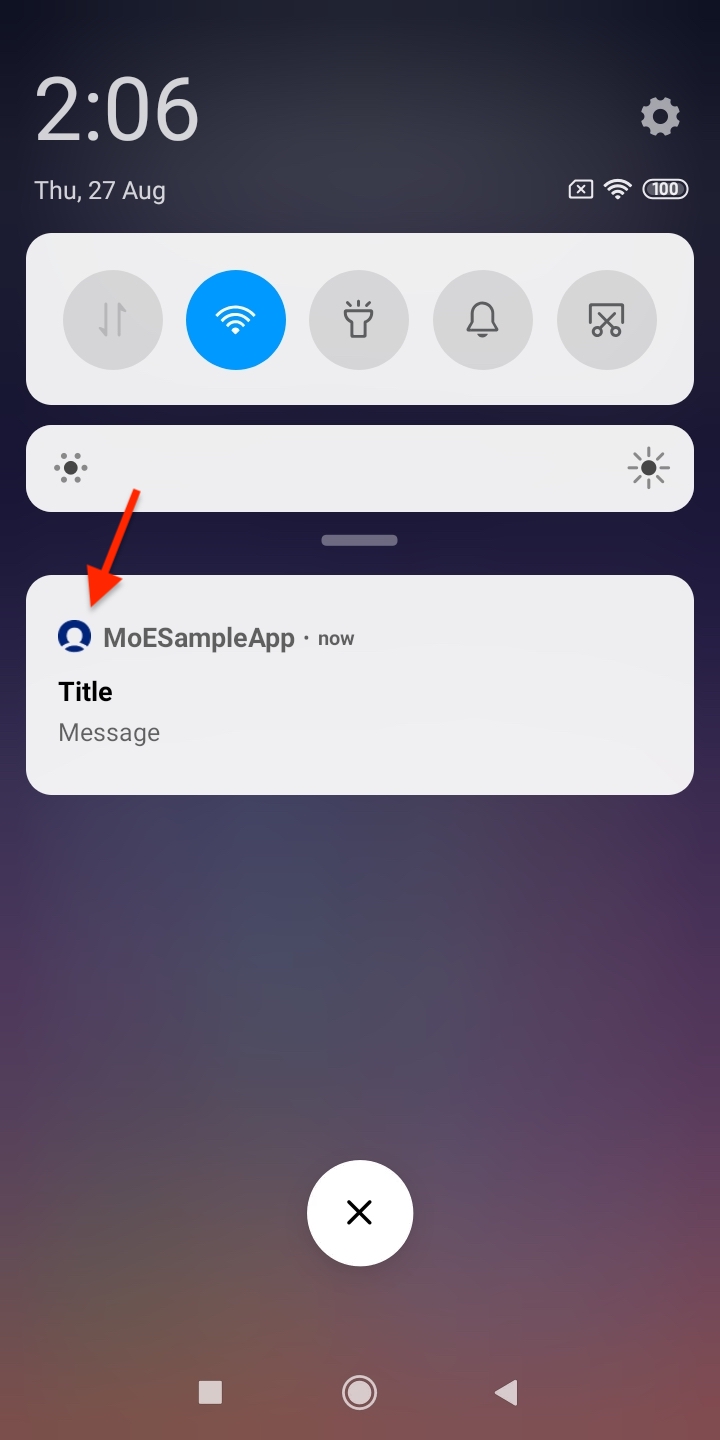

As an important part of a notification message, a notification icon is used to identify the application which has sent the notification.

Notification Icon Specification

  • The image should be flat, pictured face on, and must be white on a transparent background
  • Image Dimension should be 120 X 120 ± 15px.
  • Only .png format is supported.

Configure Background Color

Background color is the color which is applied to the notification small icon.
Example - If a background color with hex code #00237C is applied to the small icon shown above it would look as shown below.

You can add the background color based on your application theme or brand color.

Configure Package Name

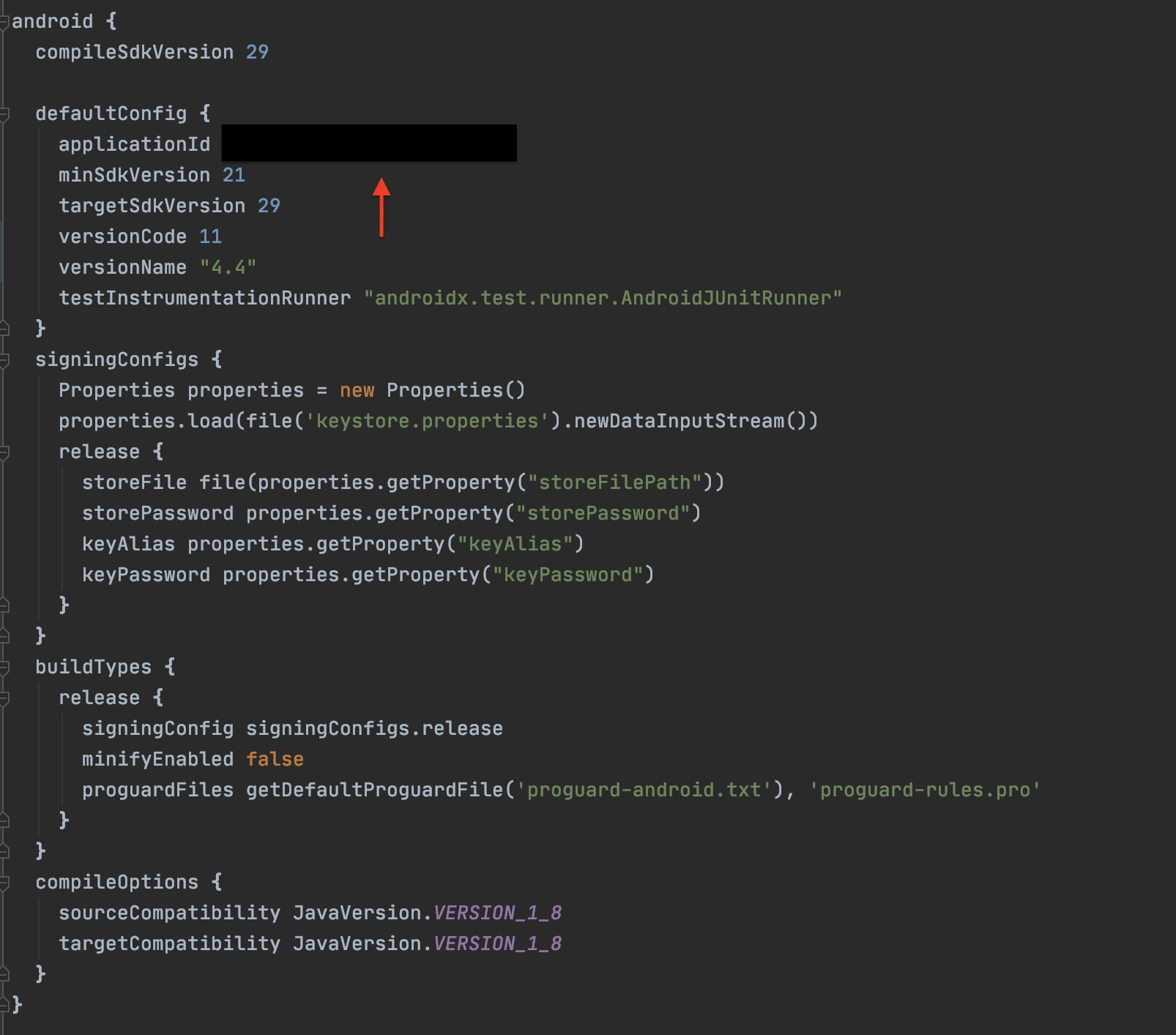

The package name for an application is the unique identifier through which the play store recognizes the application. You can find the package of your application in the build.gradle file of your application module.
